Bulletproof Glass: A Comprehensive Guide to Understanding Its Properties, Manufacturing, and Uses

When it comes to safety and security, bulletproof glass is a vital element. Bulletproof glass, also known as ballistic glass, is designed to resist the penetration of bullets or other projectiles. It is commonly used in vehicles, buildings, banks, and other high-security areas. In this article, we will explore the properties of bulletproof glass, how it is manufactured, and its various applications.

Introduction

Safety and security are paramount concerns in today’s world. With the rise of violence and terrorism, it has become essential to implement measures to protect people and property. One such measure is the use of bulletproof glass, which provides an extra layer of protection against bullets and other projectiles. In this article, we will take a closer look at bulletproof glass, its properties, and its applications.

What is Bulletproof Glass?

Bulletproof glass is a type of glass that is designed to resist the penetration of bullets or other projectiles. It is made by combining layers of glass and plastic or other materials that have high tensile strength. The glass layers are usually made of tempered glass, while the plastic layers are made of polycarbonate or acrylic.

How Does Bulletproof Glass Work?

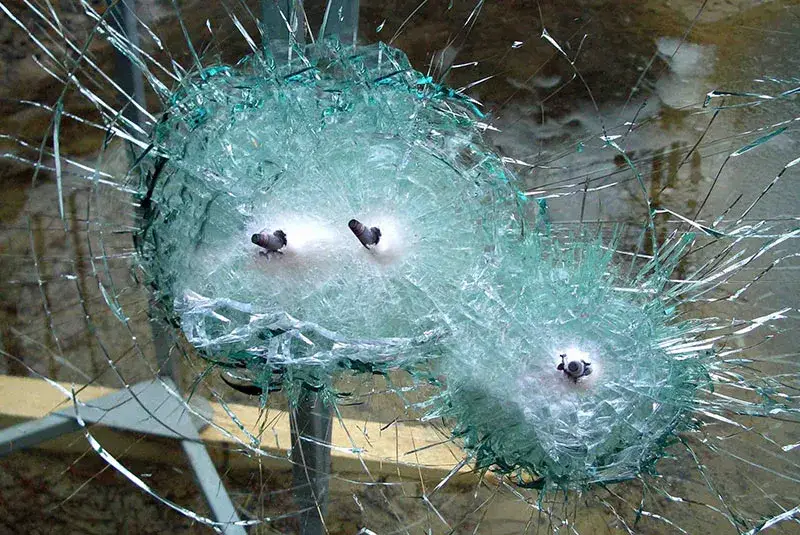

Bulletproof glass works by distributing the energy of a bullet or other projectile over a larger area, thereby reducing the impact. The glass layers are designed to absorb the initial impact, while the plastic layers deform to absorb the remaining energy. This results in a cracked but intact glass panel, which prevents the bullet from passing through.

The Types of Bulletproof Glass

There are several types of bulletproof glass, each with its unique properties and applications. These include:

Laminated Glass

Laminated glass is the most commonly used type of bulletproof glass. It is made by bonding layers of glass and plastic together, with the plastic layer acting as a shock absorber. Laminated glass can be designed to resist various levels of ballistic threats, depending on the number and thickness of the layers.

Tempered Glass

Tempered glass is a type of glass that is strengthened by heating it to high temperatures and then cooling it rapidly. It is typically used in combination with other materials to make bulletproof glass.

Glass-Clad Polycarbonate

Glass-clad polycarbonate is a type of bulletproof glass that consists of a layer of polycarbonate sandwiched between layers of glass. It is designed to provide superior resistance to ballistic threats while maintaining optical clarity.

5. The Manufacturing Process of Bulletproof Glass

The manufacturing process of bulletproof glass involves several steps, including:

1. Cutting the glass and plastic sheets to size
2. Cleaning the surfaces to remove any contaminants
3. Bonding the layers of glass and plastic together using heat and pressure
4. Curing the laminate in an autoclave at high temperatures and pressure to ensure a strong bond

6. Testing Standards for Bulletproof Glass

Bulletproof glass is tested according to various standards to ensure its effectiveness and safety. Some of the most common testing standards include:

UL 752

UL 752 is a widely recognized standard for bullet-resistant materials, including glass. It outlines eight different ballistic levels of protection, ranging from small handguns to high-powered rifles. To meet the UL 752 standard, bulletproof glass must be able to withstand specific ballistic tests and meet other criteria, such as optical quality and impact resistance.

National Institute of Justice (NIJ)

The NIJ is a US-based organization that sets standards and guidelines for law enforcement equipment, including bulletproof glass. The NIJ Standard 0108.01 outlines four different ballistic levels of protection for bulletproof glass, ranging from handguns to high-powered rifles. Bulletproof glass that meets the NIJ standard has undergone rigorous testing to ensure its effectiveness and safety.

European Standard (EN)

The European Standard EN 1063 outlines the requirements for bullet-resistant glazing materials in Europe. It outlines seven different ballistic levels of protection, ranging from small handguns to high-powered rifles. To meet the EN standard, bulletproof glass must be able to withstand specific ballistic tests and meet other criteria, such as optical quality and impact resistance.

By meeting these testing standards, bulletproof glass manufacturers can provide assurance to customers that their products meet specific criteria for ballistic protection and safety.

7. Applications of Bulletproof Glass

Bulletproof glass is commonly used in a wide range of applications, including:

Vehicles

Bulletproof glass is widely used in vehicles, such as military and police vehicles, armored cars, and high-end luxury cars. It provides protection for the occupants against ballistic threats and other forms of attacks.

Buildings

Bulletproof glass is also used in buildings, such as banks, government buildings, and embassies, to provide protection for the occupants and valuable assets. It can be used for windows, doors, partitions, and other areas where security is a concern.

Retail Stores

Bulletproof glass is used in retail stores, such as jewelry stores and banks, to provide protection for employees and valuable merchandise. It can also be used for display cases, cash registers, and other areas where security is a concern.

Military and Law Enforcement

Bulletproof glass is used extensively in military and law enforcement applications, such as helmets, shields, and body armor. It provides protection for personnel against ballistic threats and other forms of attacks.

8. Advantages and Disadvantages of Bulletproof Glass

Like any technology, bulletproof glass has its advantages and disadvantages. Some of the advantages of bulletproof glass include:

• Protection against ballistic threats and other forms of attacks
• Maintains optical clarity and transparency
• Can be customized to meet specific needs and requirements

Some of the disadvantages of bulletproof glass include:

• Costly compared to standard glass
• Heavier and thicker than standard glass, making it difficult to install and handle
• May require specialized maintenance and cleaning

9. The Future of Bulletproof Glass

As technology continues to advance, the future of bulletproof glass looks promising. Researchers are exploring new materials and manufacturing techniques that could improve the performance and affordability of bulletproof glass. Some of the emerging technologies include:

• Self-healing glass that can repair itself from cracks and other damage
• Lightweight and transparent ceramics that provide superior ballistic protection
• Nanoparticle coatings that can enhance the strength and durability of bulletproof glass

10. Conclusion

Bulletproof glass is an essential element in today’s world, providing an extra layer of protection against ballistic threats and other forms of attacks. It is used in a wide range of applications, from vehicles and buildings to military and law enforcement. With advances in technology, the future of bulletproof glass looks promising, with new materials and manufacturing techniques that could improve performance and affordability.
